TA 16 PREMIUM
The range of machines PREMIUM cam allows the variation of speed in head and camshaft, to a greater variety of parts in a machine for conventional cams. Control is via a control screen intuitive and easy to program. No need to make ISO CNC programs.
This concept allows a variation of speed in production well head and camshaft.
Increased production of machine parts in conventional cams, because the downtime between operations are eliminated.
Flexibility to program all desired speeds, either in head and camshaft, which is working to cut specific conditions for each wafer.
VIDEO EXAMPLE
SPEED VARIATION

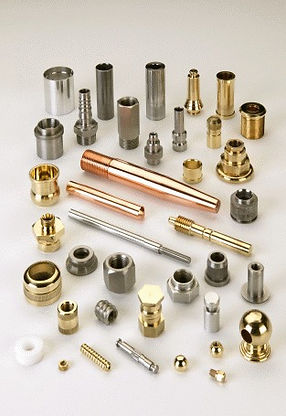

EXAMPLES OF PARTS
CONTROL SYSTEM
Mitsubishi PLC Control System with powerful touch screen 7 ".
Saving Programs
Automatic shutdown system machine.
Intuitive Programming System
MACHINE SPECIFICATIONS
TA-16B PREMIUM TA-16C PREMIUM
Capacity round up 16 mm 16 mm
Hexagonal ability to 14 mm 14 mm
Spindle Capacity
Motor Power 3CV 3 CV
speed Range 60-7000 rpm 60-7000 rpm
Camshaft
Camshaft production 4-82 pieces / minute 4-60 pieces / minuto
Maximum length of parts 220 mm 220 mm
Turning Length 35 mm 35 mm
Drilling Length 35 mm 35 mm
Number of working tools 6 tools 6 tools
Capacity internal thread - external up M-6 M-6
For more information please contact UNAMUNOCNC Thank you
